CHAPTER 13

Design a URL Shortener

A deceptively simple read-heavy system: unique keys, redirects, caching, analytics

Source: PDF p. 49

Core PDF content

Each case study in this part follows the same template: requirements, estimation, API and data model, high-level design, deep dives, and trade-offs. Use it as your interview skeleton.

Functional requirements	Non-functional requirements and scale
- Create a short URL for a long URL (optional custom alias, expiry) - Redirect short URL to the original - Basic click analytics - Delete / expire links	- Very high availability for redirects (99.99%), p99 < 100 ms - Short links must not be guessable or collide - 500 M new links/month, read:write = 100:1 - Links stored for 5+ years

Quantity	Estimate	Design implication
Write QPS	500 M / (30 x 86,400) = ~200/s (peak ~600)	Trivial for one DB; scale is in reads
Read QPS	200 x 100 = 20,000/s (peak ~60,000)	Cache hot links; replicas; CDN optional
Total records (5 years)	500 M x 12 x 5 = 30 B	Needs sharding or a scalable KV store
Storage	30 B x ~500 B = ~15 TB	Fits a modest sharded cluster
Code length	62^7 = 3.5 T > 30 B	7 base-62 characters are enough

API and data model p. 49

POST       /v1/urls
                 {"long_url": "...", "custom_alias": "?", "expires_at": "?"}
                    -> 201 {"short_url": "https://sho.rt/aZ3kP9q"}
GET    /{code}      -> 302 Location: <long_url>

DELETE /v1/urls/{code} -> 204

Table urls(code PK, long_url, user_id, created_at, expires_at). Access is purely by key, so a key-value / wide-column store (DynamoDB, Cassandra) or a sharded SQL table keyed by hash(code) fits. Click events go to a stream (Kafka), never to the redirect path.

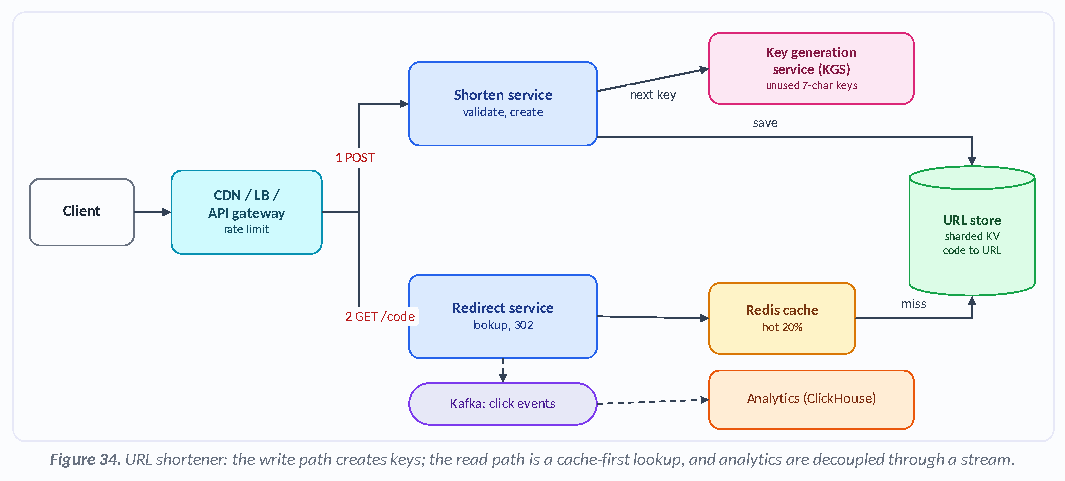

Figure 34: URL shortener: the write path creates keys; the read path is a cache-first lookup, and analytics are decoupled through a stream. — Figure 34. URL shortener: the write path creates keys; the read path is a cache-first lookup, and analytics are decoupled through a stream. · PDF p. 49

Review questions for this chapter have not been written and reviewed yet. The chapter text above is the full source content.
